  Rated power
DSV15 0.25-2.2 kW / 0.33-3.0 hp
DSV35 0.37-30 kW / 0.5-40 hp

Supply voltage
DSV15: 1-phase, 190–240V +/-10%
DSV35: 3-phase, 380–480V +/-10%

Rated current
DSV15 1.7-9.6 A @230V
DSV35 1.3-56.4A @400V / 1.1-48.5 A @480V

Protection class
IP20 / NEMA250

Approvals
CE, UL, cUL, RoHS2

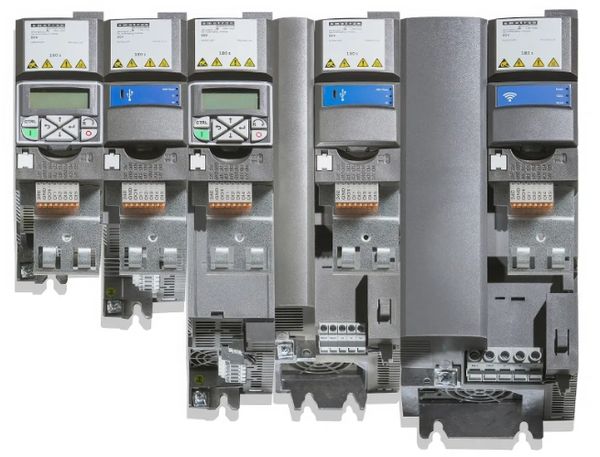

 The Emotron DSV is the ideal solution for demanding applications, combining high functionality with a compact design. Engineered for versatility, the DSV drives feature Ethernet-based fieldbuses, an integrated brake chopper, Safe Torque Off (STO), and options for encoder connections, delivering servo-like performance with both asynchronous and PMSM motors. Designed for cabinet installations, the IP20-rated DSV supports side-by-side mounting for space efficiency.

Despite its advanced capabilities, setup is effortless with the user-friendly Emotron “Easy Starter” PC-tool software, enabling intuitive programming for both DSV and VS drives. Covering a broad power range from 0.25 kW to 30 kW and operating on 230–480V AC, the DSV series ensures robust and reliable performance for a variety of motor control applications.
